DucoSlide SlimFrame
DucoSlide SlimFrame
The DucoSlide SlimFrame series consists of sliding shutters that have their blades held between discreet SlimFrame type lateral guide rails at a fixed inclination angle.
Technische Eigenschaften
| DucoSlide SlimFrame 5/80 100D | DucoSlide SlimFrame 5/80 Ellips 100 | DucoSlide SlimFrame 5/40 40Z | DucoSlide Slimframe 5/40 80D | DucoSlide SlimFrame 5/40 60F | DucoSlide SlimFrame 5/40 Linear 55 | |
|---|---|---|---|---|---|---|
| Lamellenhöhe | 100 | 100 | 85 | 70 | 51 | 39 |
Schiebesystem DucoSlide
| Typ | Einfaches Schiebesystem | Symmetrisches Schiebesystem | Teleskopisches Schiebesystem | BiFold Schiebesystem | QuadraFold Schiebesystem |
|---|---|---|---|---|---|
| DucoSlide SlimFrame 5/80 100D |
|
|
|
|
|
| DucoSlide SlimFrame 5/80 Ellips 100 |
|
|
|
|
|
| DucoSlide SlimFrame 5/40 40Z |
|
|
|
|
|
| DucoSlide Slimframe 5/40 80D |
|
|
|
|
|
| DucoSlide SlimFrame 5/40 60F |
|
|
|
|
|
| DucoSlide SlimFrame 5/40 Linear 55 |
|
|
|
|
|

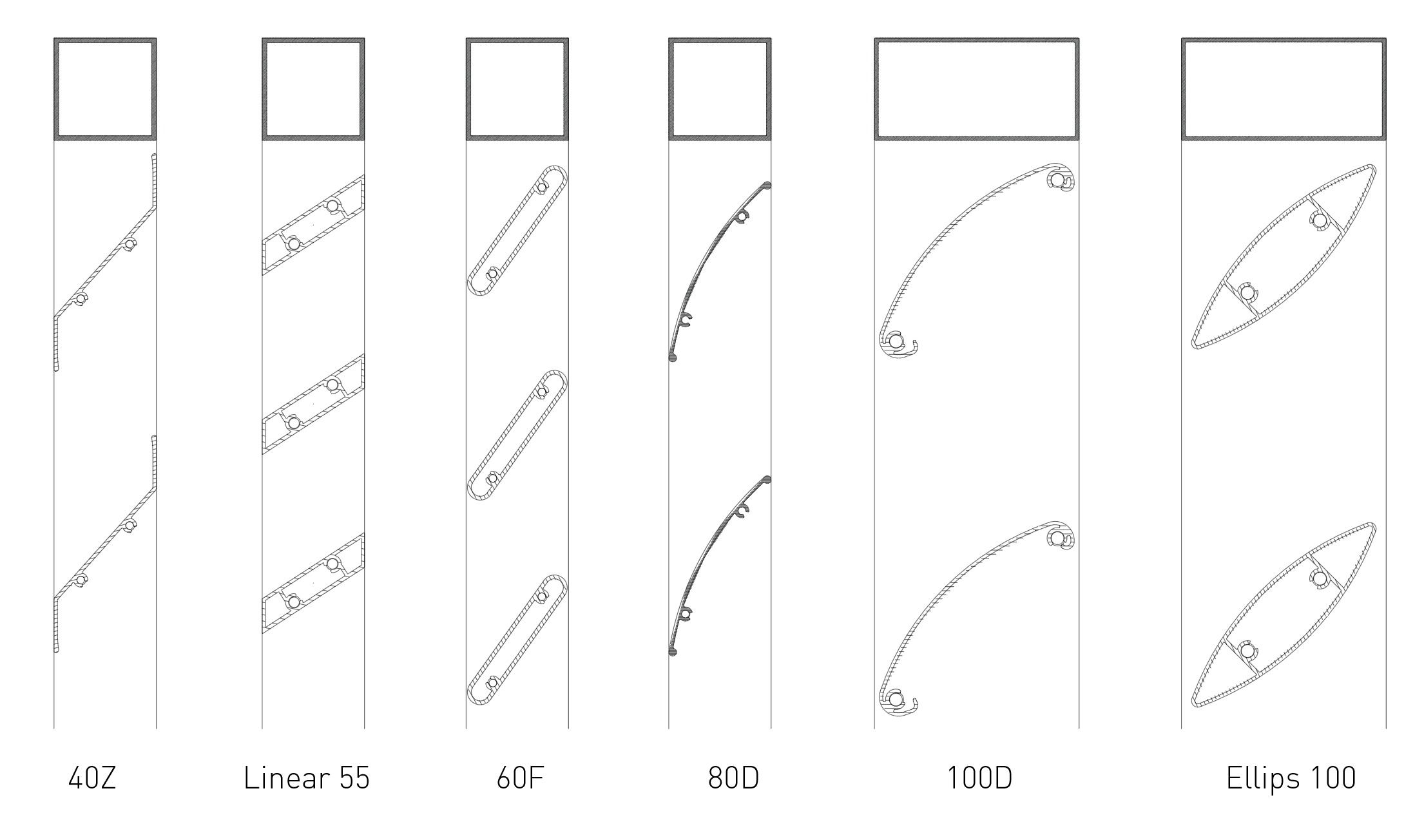

Lamellen DucoSlide SlimFrame
| Typ | Lamellentyp | SlimFrame 5/40 | SlimFrame 5/80 | Lamellenschritt (mm) | Neigung |
|---|---|---|---|---|---|
| DucoSlide SlimFrame 5/80 100D | 100D |
|
|
140 | 45° |
| DucoSlide SlimFrame 5/80 Ellips 100 | Ellips 100 |
|
|
140 | 45° |
| DucoSlide SlimFrame 5/40 40Z | 40Z |
|
|
110 | 48° |
| DucoSlide Slimframe 5/40 80D | 80D |
|
|
100 | 61° |
| DucoSlide SlimFrame 5/40 60F | 60F |
|
|
75 | 55° |
| DucoSlide SlimFrame 5/40 Linear 55 | Linear 55 |
|
|
70 | 33° |
